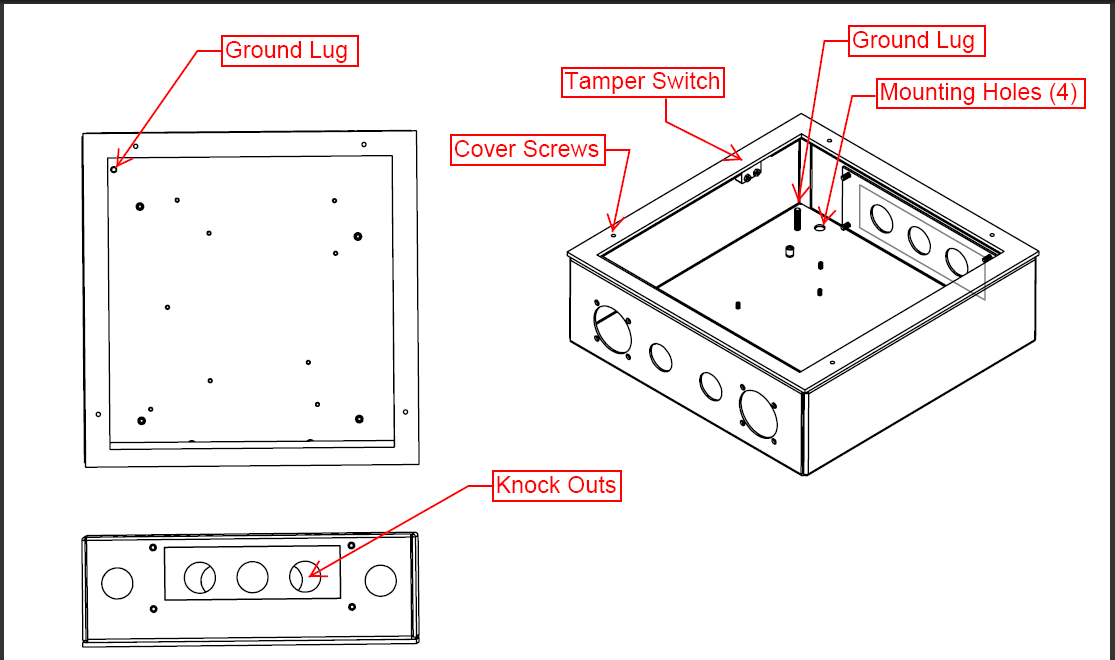

Mount the rear case to a firm surface using your preferred mounting technique. Global installers usually use #8 or #10 Self Tapping Tek Screws. There are 4 mounting holes provided in the rear of the case. Make sure any unused holes are sealed using silicon to prevent water, bugs and other elements from entering the case. Make sure to provide an EXCELLENT EARTH ground. A ground stud is provided inside the case.
!Warning
Be certain to properly ground the device as shown in the Earth Grounding Section! Be certain to firmly attach a ground wire from the ground lug inside the rear case to your Earth Ground provision.
!Warning
A drain wire from the shield MUST be attached to the GND Data Connector to protect the device from Lightning! Only connect the drain wire to the remote end! Power Section for more information.
