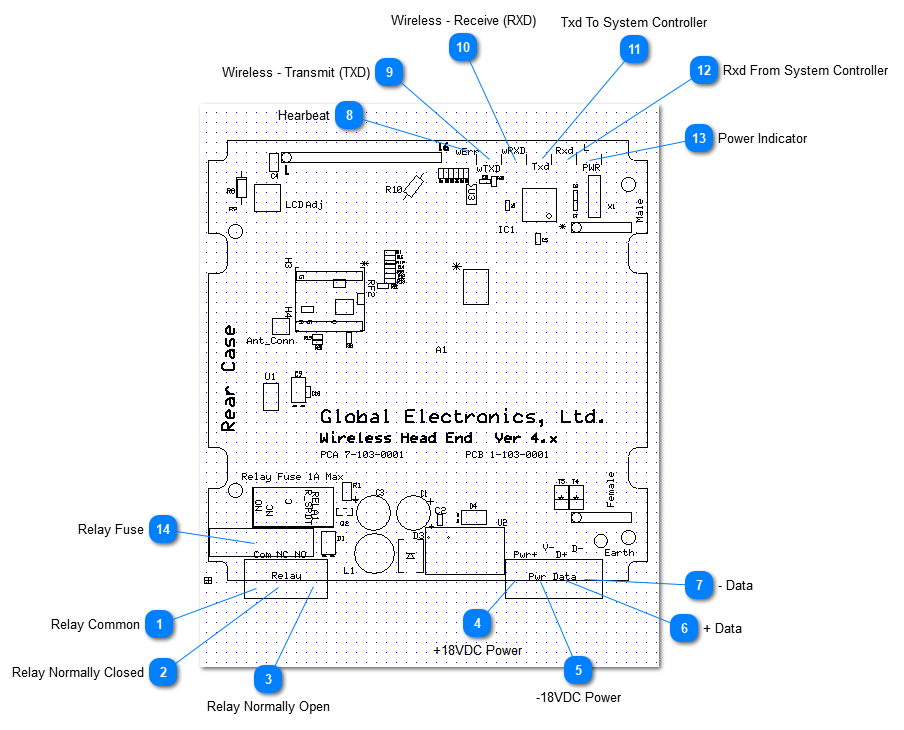

Wireless Head End

Wireless Head End
1

Relay Common


2

Relay Normally Closed


3

Relay Normally Open


4

+18VDC Power


5

-18VDC Power


6

+ Data


7

- Data


8

Hearbeat


This LED blinks to indicate that the micro controller is working.
9

Wireless - Transmit (TXD)


This LED blinks whenever data is Transmitted by the Radio to other Wireless Devices.
10

Wireless - Receive (RXD)


This LED blinks whenever data is received by the radio.  It will go on only when the data is intended for this device.
11

Txd To System Controller


This LED blinks whenever data is Transmitted by the device to the System Controller.  It only blinks when the device is replying to a message from the System Controller Software
12

Rxd From System Controller


This LED blinks whenever data is received by the device.  It will go on whether the data is intended for this device or any other device so long as the data is of the correct form.
13

Power Indicator


This LED is ON when power is applied to the system.
14

Relay Fuse


Use only 1A Fuse replacements
