** Very Important - Earth Grounding

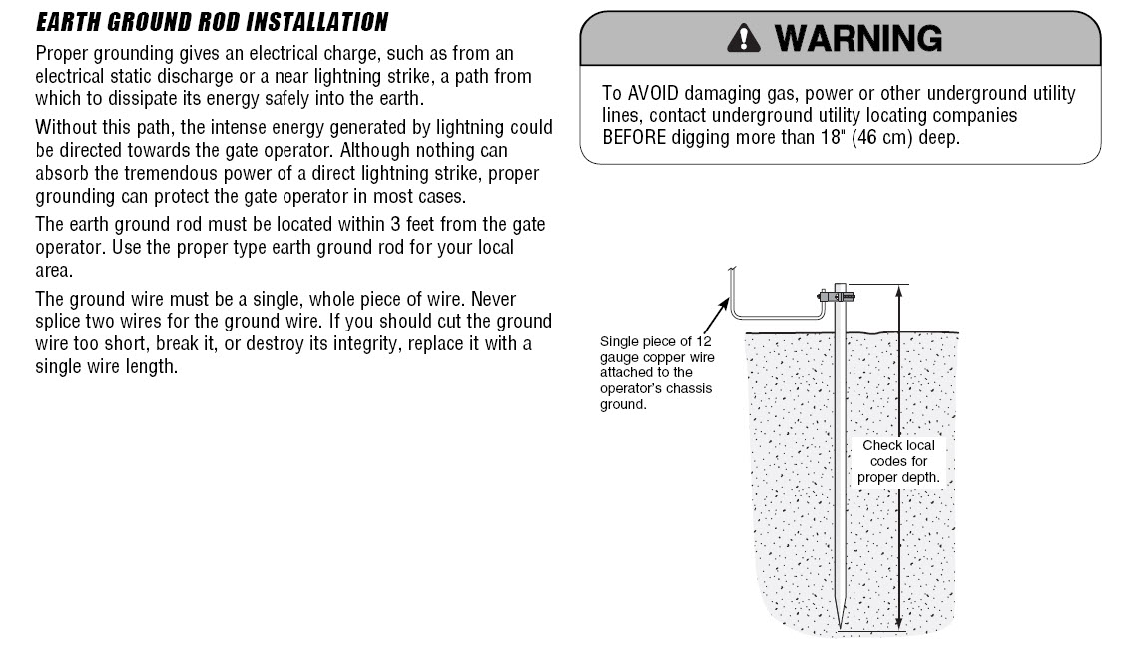

Proper Earth Grounding:

A ground lug is provided on the inside rear enclosure.  Additionally, a ground wire should be attached from any available screw in the front enclosure housing to the rear enclosure lug.  Then a ground wire from the rear enclosure lug to earth ground.  This will provide a path for lightning and static electricity. A proper Earth Ground Rod must be installed to ensure proper grounding and prevent damage to keypads. You should use 1 ground rod for each keypad.
