Installing Optional Intercom Option


The Intercom ready option only as an option with EclypX model Keypads.   It includes the necessary components to make the keypad a station ready to work with an Aiphone Brand LEF system.

!Warning
The purchase of this option does NOT provide a complete Intercom.  The option requires the use of an Aiphone LEF Intercom system.

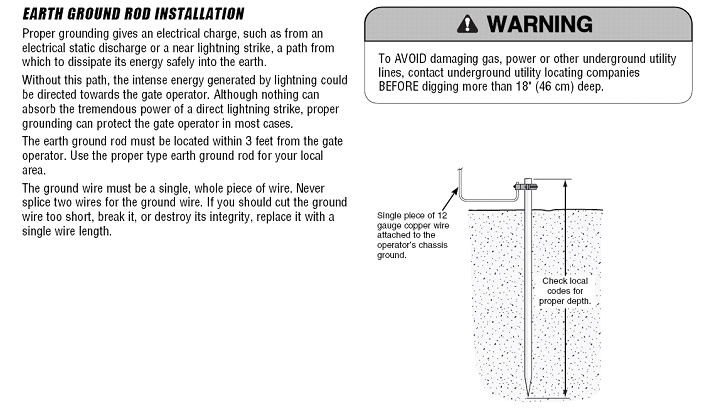

Proper Earth Grounding
A ground lug is provided on the inside rear enclosure.  Additionally, a ground wire should be attached from any available screw in the front enclosure housing to the rear enclosure lug.  Then a ground wire from the rear enclosure lug to earth ground.  This will provide a path for lightning and static electricity.
A proper Earth Ground Rod must be installed to ensure proper grounding and prevent damage to keypads. You should use 1 ground rod for each keypad.




!Warning
Improper grounding may cause personal or property damage or injury. Global not responsible for any injury or damage!

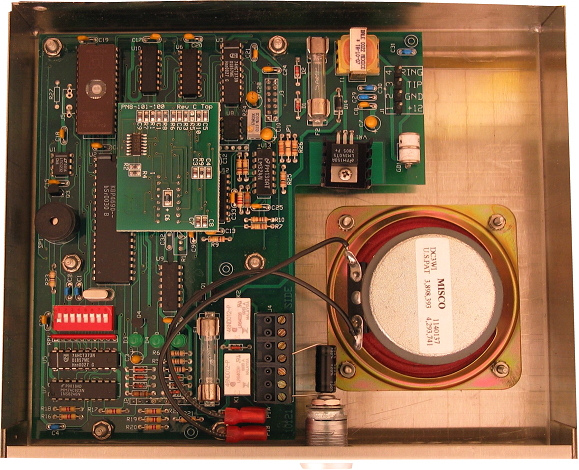

Converting From MSTC Keypad

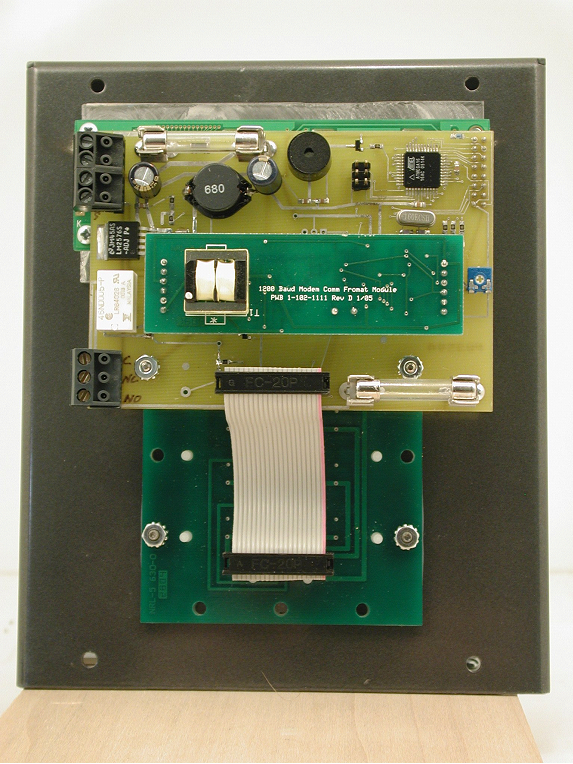

Replacing an MSTC keypad with a BasicX or EclypX keypad
NOTE:
On start up, each keypad will display only  the DATE  and TIME.  It will scroll between date/time and a BLANK screen.  This will change only AFTER the computer sends the user defined GREETING to the keypad.


WARNING!
Never plug in, unplug, remove PCB modules when the unit is powered on.  You may unplug only the power connector while power is turned on.

Step 1.
Remove the 4 pin black connector from the MSTC keypad by pulling the black connector directly up from the board.

Step 2.
Remove the 7 position connector from the bottom of the MSTC board.

Step 3.
Rotate the 4 position black connect as shown (180 degrees from what it was before) then and insert into the pins.  Power should now be on.

Step 4.
Connect one of the wires from the 7 position connector on the MSTC keypad to the position marked ‘C’ and the other wire to the position marked with a “NO”.















What the lights mean
There are 3 LED indicator lights.
1 – Heart Beat
2 – Receive Data
3 – Reply back to computer

When working properly the receive data LED will go on then immediately after the Reply LED will go on.  The heart beat blinks periodically to indicate that the brains are working.
