Rear Panel

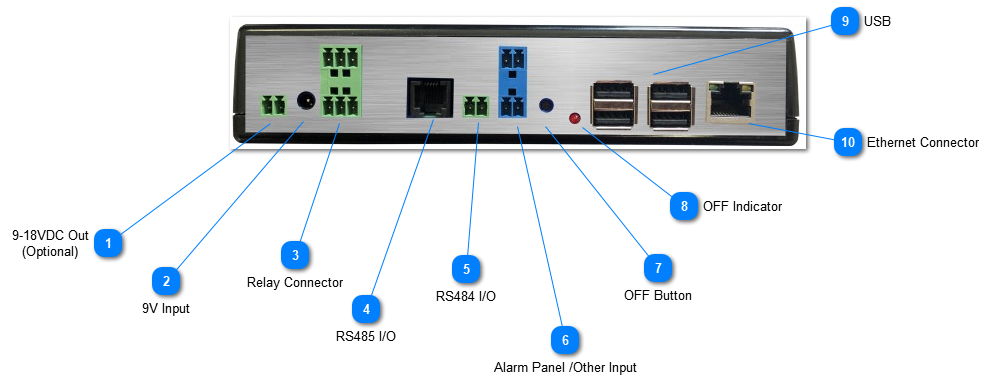

Rear Panel Connections


Rear Panel

















1

9-18VDC Out

(Optional)

1. 9-18VDC Out
(Optional)
Optional 9-18VDC output
2

9V Input

2. 9V Input
9V Main Power Connector
3

Relay Connector

3. Relay Connector
2 Independant Relays
4

RS485 I/O

4. RS485 I/O
RS 485 Out to Remote Devices
5

RS484 I/O

5. RS484 I/O
RS 485 Out to Remote Devices
6

Alarm Panel /Other Input

6. Alarm Panel /Other Input
Special use only Alarm Panel/Other Input
7

OFF Button

7. OFF Button
Press and hold until 8 turns ON and stops blinking
8

OFF Indicator

8. OFF Indicator
Press and hold #7 until this turns ON and stops blinking
9

USB

9. USB
Optional USB Connections
10

Ethernet Connector

10. Ethernet Connector
Plug into your LAN using an Ethernet Cable. Mandatory use.
