Set PIN MASK On/Off

<TODO>: Insert description text here... And don't forget to add keyword for this topic


1
How to turn On/Off PIN Entry Masking
How to change keypad mask (***) settings

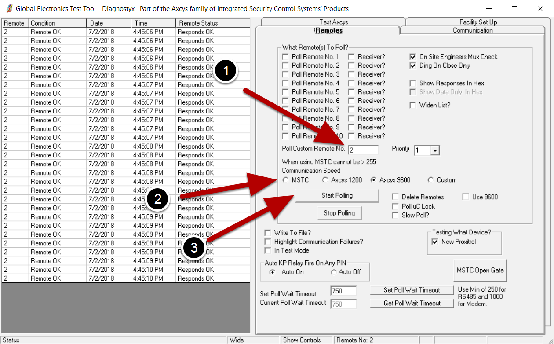

Start Diagnostyx
1.  Select the Address you want to work with
2.. Select the type of device (MSTC, Axcys 1200 or Axcys 9600) .
3.  Click the Start Polling button

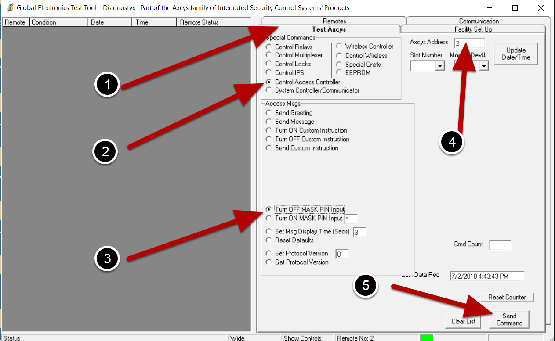

1.  Change to the Test Axcys Tab
2.  Enter the address you are working with
3.  Select "Control Access Controller
4.  Select either the Turn OFF MASK, PIN Input or Turn ON MASK PIN Input
5.  Click the Send Command Button
6. Check the device.
