Notes:

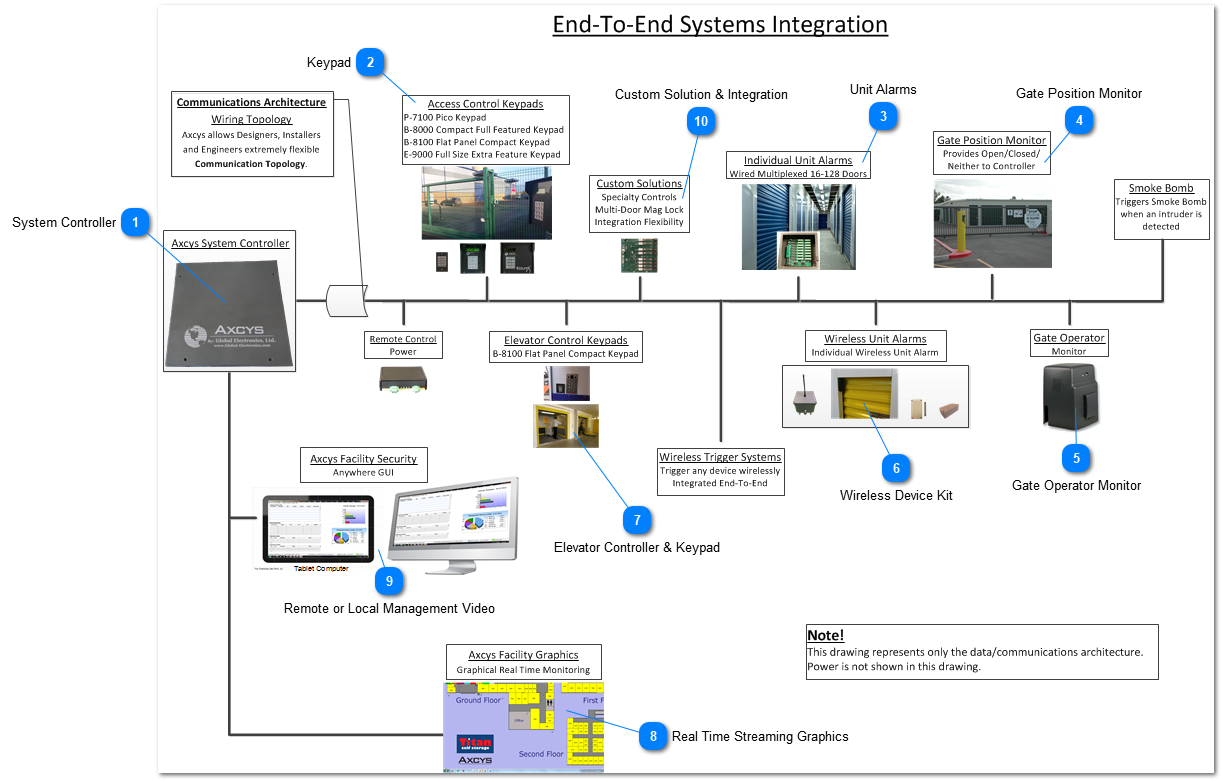

1. The illustration below is of Systems Integration and Data Communications.
2. Power distribution and systems are not shown and are not to be connected following this illustration.
 System Controller System ControllerThis is the main "Brain" of the Axcys Security Management System. |
|
 Keypad Keypad Access |
|
 Unit Alarms Wired Multiplexed unit alarms |
|
 Gate Position Monitor Gate position monitor |
|
 Gate Operator Monitor Gate Operator Monitor - for reduced managment facilities |
|
 Wireless Device Kit |
|
 Elevator Controller & Keypad Flat panel keypad and Elevator Controller |
|
 Real Time Streaming Graphics Real-Time streaming graphics |
|
 Remote or Local Management Video Remote or Local Video - multiple OS Platforms Supported |
|
 Custom Solution & Integration Multiple Custom Solutions - Contact with your challenge! |
|
