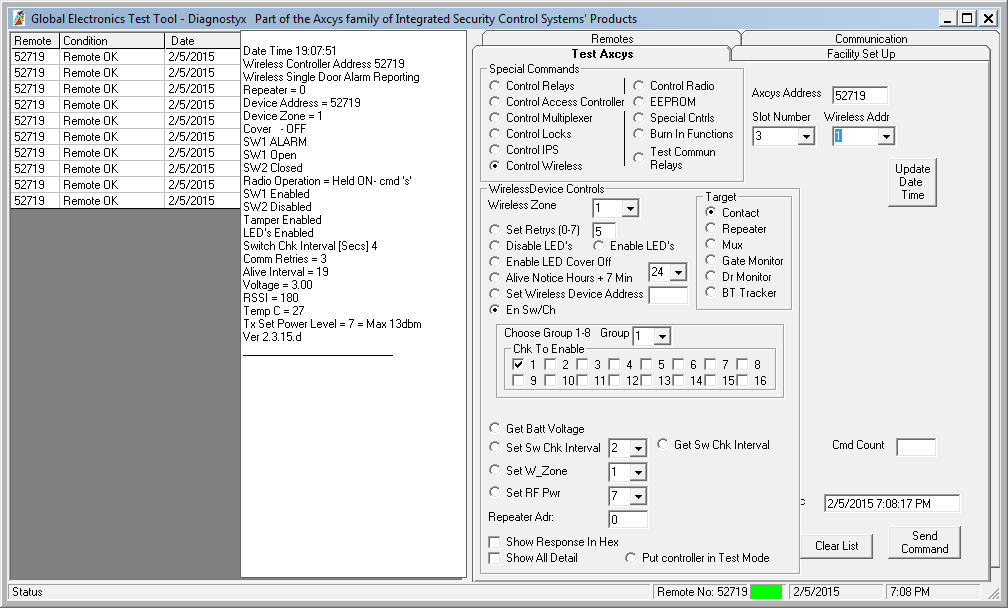

Each Wireless Contact can be configured individually for its specific parameters. These include the interval to which the Conact Switches are checked, which Contact Switch is utilized, the power output of the Wireless Transceiver and other parameters. To access these features, the cover must be off so that the Tamper Switch shows the Cover Off. In this mode the device stays in Receive mode for about a minute, followed by a sleep period, as determined by the Contact Switch Check Interval, then awakened for about a minute. This sequence is repeated until the cover is closed.
Target
Contact
Repeater
Mux
Gate Monitor
Dr Monitor
BT (Blue Tooth) Tracker
Wireless Zone
Set Retries
Disable LED's
Enable LED's
Enable LED Cover Off
Alive Notice Hours + 7 Min
Set Wireless Device Address
Enable/Disable Switches (up to 128 for muxes)
Get Battery Voltage
Set Wireless Zone
Set RF Power
Get Switch Check Interval
Use Switch 1 when mounting the device on the side of the door.
Use Switch 2 when mounting the device over the top of the door.
